gdb固件提取插件

修了个小bug，方便提取固件使用

iot类一键获取shell

gef插件代码

原作者的插件代码并没有完全公开，缺少了很多，也可能是由于版本适配问题，以下是修改过的最新代码。

底层原理见参考资料，使用时注意吧断点全部清除。如果gef用不习惯可以移植pwndbg，只需要更改gdbinit即可

source /home/pisanbao/pwndbg/gdbinit.py
source ~/gef.py

这样就能在gef中使用一些pwndbg定义的命令了后面在source一下插件代码正常使用即可，其中patterns found可能会出现小bug在只找到一个pattern的时候就不是patterns是pattern

class ExecveCommand(GenericCommand):
    """use execve do anything cmd"""
    _cmdline_ = "execve"
    _syntax_  = "{:s} [cmd]|set addr [address]".format(_cmdline_)
    _example_ = "{:s} /usr/sbin/telnetd -l /bin/bash -p 23333\n{:s} set addr 0x7fb4360748ae".format(_cmdline_, _cmdline_)

    _aliases_ = ["exec",]
    def __init__(self):
        super().__init__(complete=gdb.COMPLETE_FILENAME)
        self.findAddr = None
        return

    @only_if_gdb_running
    def do_invoke(self, argv):
        '''
        mips/arm todo
        '''
        if len(argv) > 0:
            if argv[0] == "debug":
                # debug = 1
                dofunc = print
                argv = argv[1:]
            elif argv[0] == "set":
                if argv[1] == "addr":
                    self.findAddr = int(argv[2], 16)
                    info("set success")
                return
            else:
                # debug = 0
                dofunc = gdb.execute
        else:
            err("The lack of argv.")
            return
        cmd = " ".join(argv)
        cmd = [b"/bin/sh", b"-c", cmd.encode()]
        current_arch = gef.arch
        # print(current_arch.sp)
        # print(current_arch.pc)
        # print(current_arch.ptrsize)
        # print(endian_str())
        # print(current_arch.syscall_instructions)
        # print(current_arch.syscall_register)
        # print(current_arch.special_registers)
        # print(current_arch.function_parameters)
        # print(current_arch.arch)
        # print(current_arch.get_ith_parameter)
        # print(current_arch.gpr_registers)
        # print(current_arch.get_ra)
        # write_memory

        inferior = gdb.selected_inferior()
        write_memory = inferior.write_memory

        try:
            rsp = current_arch.sp
            nowpc = self.findAddr or current_arch.pc
        except gdb.error as e:
            err("%s Please start first."%e)
            return
        bit = current_arch.ptrsize
        print(f"current_arch.ptrsize={current_arch.ptrsize}")
        if current_arch.arch == "X86":
            arg0 = "$rdi" if bit == 8 else "$ebx"
            arg1 = "$rsi" if bit == 8 else "$ecx"
            arg2 = "$rdx" if bit == 8 else "$edx"
            sysreg = current_arch.syscall_register
            sysreg_value = 59 if bit == 8 else 11
            syscall_instr = 0x050F if bit == 8 else 0x80CD
        else:
            err("%s can't implementation." % current_arch.arch)
            return
        spc = nowpc & (~0xFFF)
        res = gdb.execute("find /h %s,%s,%s"%(spc, spc+0x10000, syscall_instr), to_string=True)
        print(f"syscall addr={res}")
        if "patterns found." not in res:
            err("can't find syscall. Please break in libc.")
            return
        newpc = res.splitlines()[0].split(' ')[0]
        print(f"newpc addr={newpc}")
        endian_symbol = endian_str()
        endian = "little" if endian_symbol == "<" else "big"
        print(f"endian_symbol={endian_symbol}")
        startaddr = rsp + 0x100
        args_list = []
        # cmd write to stack
        for cstr in cmd:
            args_list.append(startaddr)
            cstr += b"\x00" * (4 - (len(cstr) % 4))
            length = len(cstr)
            #print(f"i am here~~~{cstr}")
            write_memory(startaddr, cstr, length)
            startaddr += length
            # for i in range(0, len(cstr), 4):
            #     t = hex(struct.unpack(endian_symbol+'I', cstr[i:i+4])[0])
            #     dofunc("set  *(%s)=%s"%(hex(startaddr), t))
                # startaddr += 4
        args_list.append(0)
        # set cmd point (rsi)
        rsiAddr = rsp + 0x50
        addrvalue = b""
        for addr in args_list:
            addrvalue += addr.to_bytes(bit, endian)

        write_memory(rsiAddr, addrvalue, len(addrvalue))
            # for i in range(0, len(addr), 4):
            #     t = hex(struct.unpack(endian_symbol+'I', addr[i:i+4])[0])
            #     dofunc("set  *(%s+%d)=%s"%(hex(rsiAddr), i, t))
            # rsiAddr += bit

        # set first arguments.
        dofunc("set %s=%s"%(arg0, hex(args_list[0])))
        # set second arguments
        dofunc("set %s=%s"%(arg1, hex(rsp + 0x50)))
        # set third arguments
        dofunc("set %s=0"%arg2)
        # set syscall register
        print(f"i am here now~~~")
        dofunc("set %s=%s"%(sysreg, sysreg_value))
        # set $pc=$sp
        print(f"i am here~~~{newpc}")
        dofunc("set $pc=%s"%newpc)
        print(f"i am here~~~")
        # set *$pc
        # dofunc("set *(int *)$pc=%s"%hex(syscall_instr))
        # show context
        # dofunc("context")
        # continue
        dofunc("c")
        return

register_external_command(ExecveCommand())

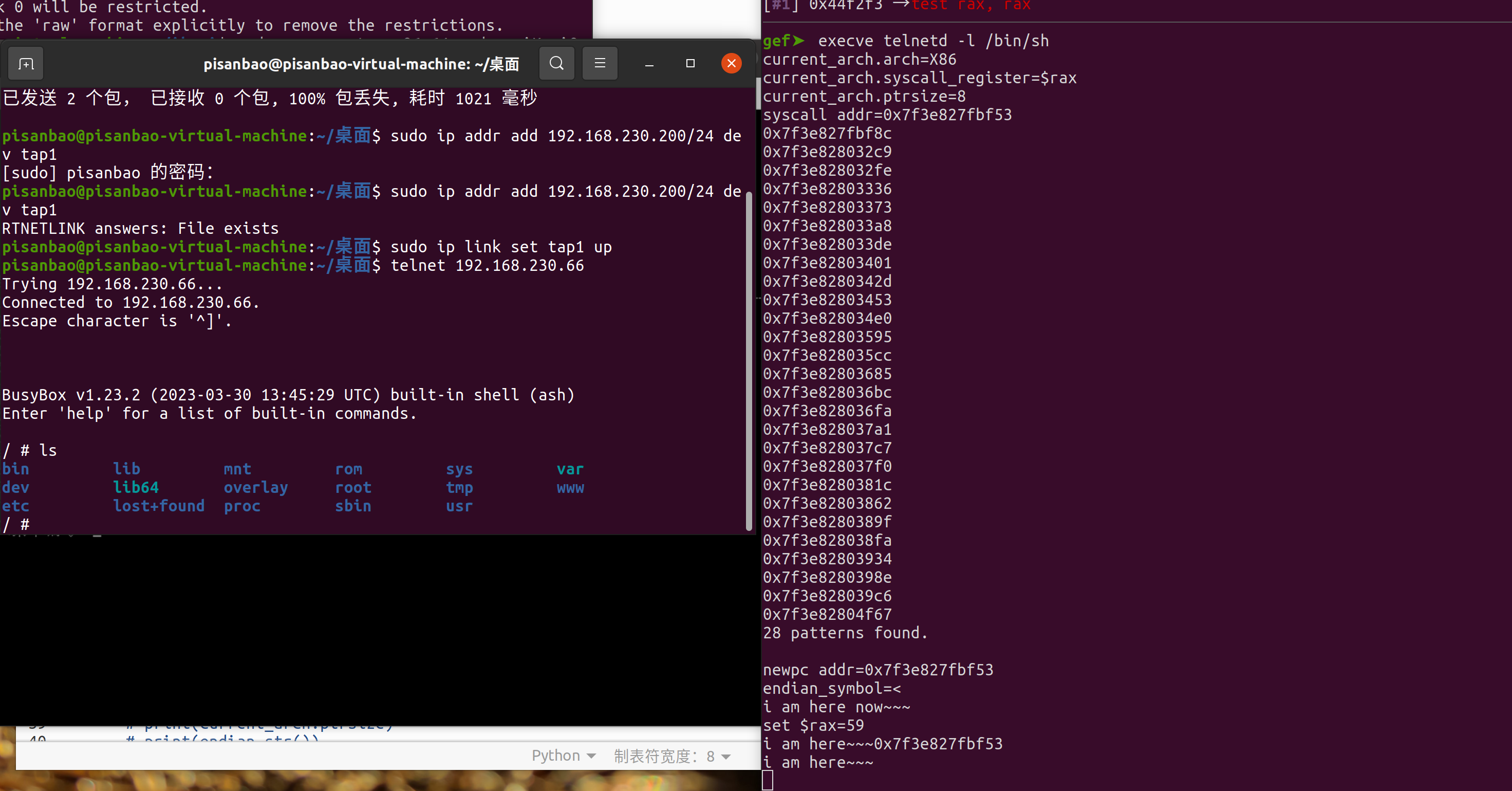

最终效果如下，注意调试时要gdb aaa，aaa是vmlinuz转换成的文件

可以使用vmlinux-to-elf或者extract-vmlinux或者binwalk强行提取

参考资料

https://paper.seebug.org/1660/
